[GitHub] [pulsar] lhotari opened a new issue #10738: Direct memory leaks in ledger rollover or when Bookkeeper is overloaded

lhotari opened a new issue #10738:
URL: https://github.com/apache/pulsar/issues/10738

**Describe the bug**

Broker (tested with 2.6.3, 2.7.2 and master branch) runs out of direct memory under certain conditions.
The Netty leak detector shows leaks (leak detector enabled with `-Dpulsar.allocator.leak_detection=Advanced -Dio.netty.leakDetectionLevel=advanced`).

```
11:53:26.531 [BookKeeperClientWorker-OrderedExecutor-0-0] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:26.538 [BookKeeperClientWorker-OrderedExecutor-0-0] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:26.544 [BookKeeperClientWorker-OrderedExecutor-0-0] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.894 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.898 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.901 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.902 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.903 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.904 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:51.905 [pulsar-io-24-1] ERROR io.netty.util.ResourceLeakDetector - LEAK: ByteBuf.release() was not called before it's garbage-collected. See https://netty.io/wiki/reference-counted-objects.html for more information.
11:53:56.585 [pulsar-io-24-2] ERROR org.apache.pulsar.PulsarBrokerStarter - -- Shutting down - Received OOM exception: failed to allocate 16777216 byte(s) of direct memory (used: 1056964615, max: 1073741824)
```

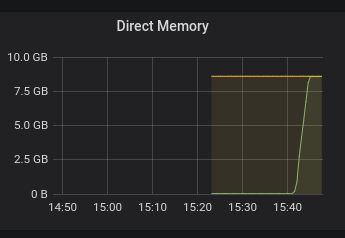

![image](https://user-images.githubusercontent.com/66864/119982448-85da3780-bfc7-11eb-805e-64acba567d32.png)

**To Reproduce**
Steps to reproduce the behavior:

In first terminal window (leave terminal open):
```
# checkout repro repo
git clone https://github.com/lhotari/pulsar-issue-6054-repro
cd pulsar-issue-6054-repro

# deployment to minikube (or similar local environment) with enough RAM (8GB?)
helm repo add apache https://pulsar.apache.org/charts
helm repo update
./helm-deployment/redeploy_1node_cluster.sh

# forward ports 8080 and 6650 to deployed environment
# wait until deployment is completed, then run
./helm-deployment/pulsar_port_forward.sh
```

In each of the following terminal windows, configure pulsar-admin / pulsar-perf connectivity to the deployed environment
```
# set pulsar-client / pulsar-admin / pulsar-perf settings
export PULSAR_CLIENT_CONF=$PWD/helm-deployment/client.conf

# before continuing, ensure that pulsar-admin and pulsar-perf are on the PATH
# for example
export PATH="$HOME/apache-pulsar-2.7.1/bin:$PATH"
```

Deploying the functions used in the repro
```
./deploy_function_chain.sh
```

Open 2 terminal windows with PULSAR_CLIENT_CONF and the PATH with pulsar-perf.

Run producer:
```
./produce.sh
```

Run consumer
```
./consume.sh
```

In one terminal window, grep the logs
```
kubectl -n pulsar-testenv logs -f pod/pulsar-testenv-deployment-broker-0 |egrep 'LEAK|OOM'
```

**Expected behavior**

Direct memory shouldn't be leaked, even when the system is under load. Netty buffers should be released before discarding.

**Additional context**

The broker is intentionally using special configuration that makes it easier to reproduce the issue.
```
broker:
configData:
backlogQuotaDefaultRetentionPolicy: producer_exception
bookkeeperEnableStickyReads: 'true'
brokerDeduplicationEnabled: 'false'
brokerDeleteInactiveTopicsEnabled: 'false'
exposeConsumerLevelMetricsInPrometheus: 'false'
exposeTopicLevelMetricsInPrometheus: 'true'
managedLedgerAddEntryTimeoutSeconds: '120'
managedLedgerMaxEntriesPerLedger: '10'
managedLedgerMaxLedgerRolloverTimeMinutes: '2'
managedLedgerMinLedgerRolloverTimeMinutes: '0'
managedLedgerReadEntryTimeoutSeconds: '120'
topicFencingTimeoutSeconds: '5'
maxUnackedMessagesPerConsumer: '0'
maxUnackedMessagesPerSubscription: '0'
```
the main configuration setting to trigger the problem is `managedLedgerMaxEntriesPerLedger=10`. It's not a value to use in production configurations. The current default for `managedLedgerMaxEntriesPerLedger` is `50000`. However when using a really low value, it can stress test the ledger rollover functionality in the broker. This reveals that there is some execution path where Netty buffers are discarded without releasing them. This shouldn't happen even when the broker is overloaded. The expectation is to first fix that issue.

This test scenario shows also another problem. Sometimes the broker gets into a state where the direct memory doesn't run out and instead the random1-in topic "locks up". The stats-internal shows the state of `LedgerClosing` for some partitions. In this state, producing gets blocked. This issue might be related to #6054 .

The direct memory leak issue might be related to #9562 or #10136.

--
