[GitHub] [incubator-echarts] leaon4 opened a new issue #11493: 树图用setOption更新数据时，发现图有残留BUG
leaon4 opened a new issue #11493: 树图用setOption更新数据时，发现图有残留BUG
URL: https://github.com/apache/incubator-echarts/issues/11493

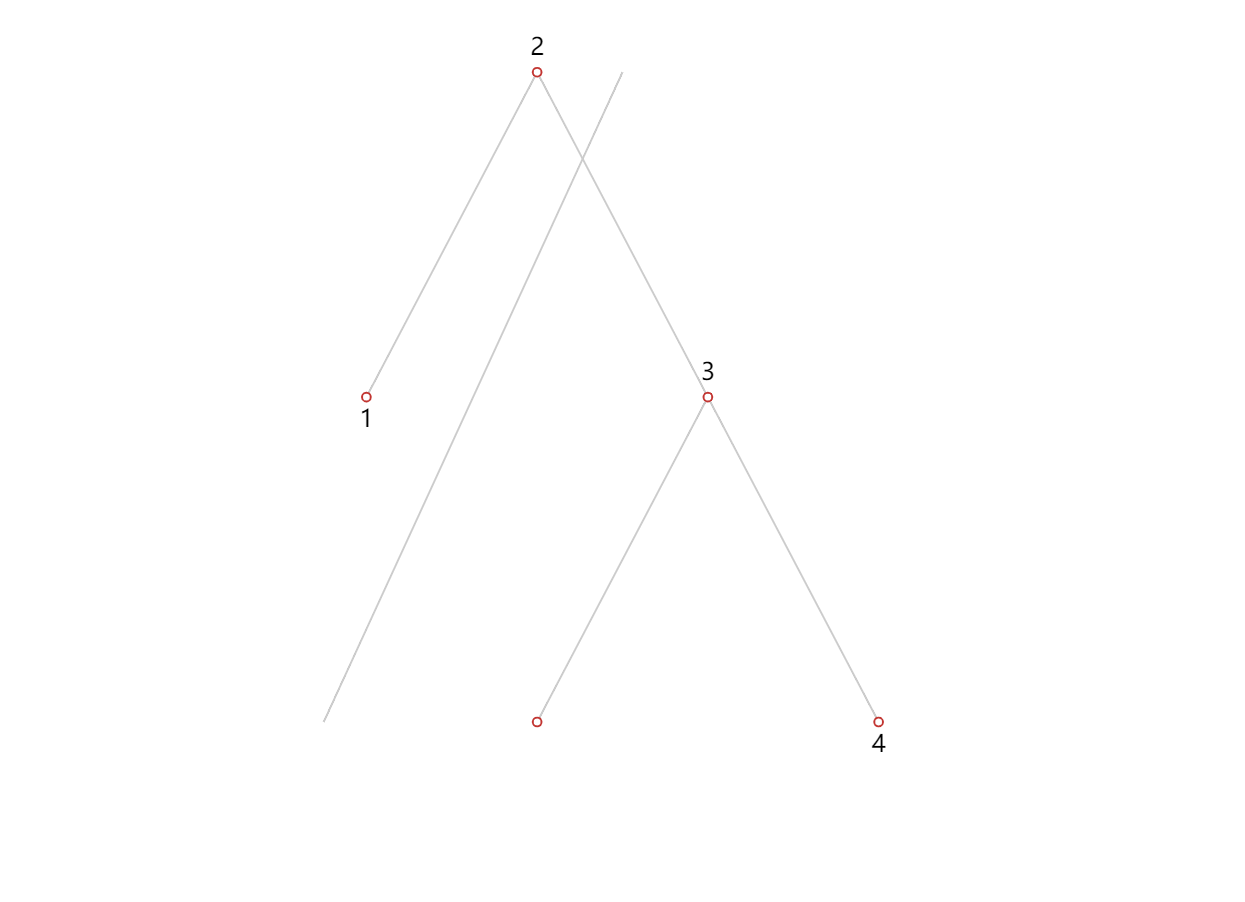

用echarts画二叉树图，在实现AVL树插入的时候发现的BUG
// index.html
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta http-equiv="X-UA-Compatible" content="ie=edge">
<title>Tree</title>
<style>
html,
body {
margin: 0;
padding: 0;
}
.btn-container {
position: absolute;
top: 0;
left: 0;
width: 100%;
text-align: center;
}
</style>
<script src="assets/echarts.js"></script>
</head>
<body>
<div id="mychart" style="height: 100vh"></div>
<div class="btn-container">
<button class="btn" onclick="gen.next()">run</button>
<button class="btn" onclick="refresh()">refresh</button>
</div>
<script src="tree.js"></script>
</body>
</html>
// tree.ts
const container = document.getElementById('mychart') as HTMLDivElement;
const myChart = geta('echarts').init(container);
function geta(str: any): any {
return window![str];
}
const option: any = {
tooltip: {
trigger: 'item',
triggerOn: 'mousemove'
},
series: [
{
type: 'tree',
// data: [data],
data: [],
left: '2%',
right: '2%',
top: '8%',
bottom: '20%',
symbol: 'emptyCircle',
orient: 'vertical',
expandAndCollapse: true,
lineStyle: {
curveness: 0,
},
initialTreeDepth: -1,
// symbolSize:20,
label: {
normal: {
position: 'top',
align: 'middle',
fontSize: 19,
color: 'black'
}
},
leaves: {
label: {
normal: {
position: 'bottom',
align: 'middle'
}
}
},
animationDurationUpdate: 750
}
]
};
type ChartData = {
name: number | string;
children?: ChartData[];
};
type Item = {
num: number;
};
type TreeNode = {
item: Item;
left: TreeNode;
right: TreeNode;
height?: number;
} | null;
function itemCompare(item1: Item, item2: Item): number {
return item2.num - item1.num;
}
class BTree {
size: number;
root: TreeNode;
constructor() {
this.size = 0;
this.root = null;
}
protected createNode(item: Item): TreeNode {
return {
item,
left: null,
right: null
};
}
addItem(item: Item): void {
let newNode = this.createNode(item);
this.root = this._addItem(this.root, newNode);
this.size++;
}
protected _addItem(node: TreeNode, newNode: TreeNode): TreeNode {
if (!node) {
return newNode;
}
let dir: number = itemCompare(node.item, newNode!.item);
if (dir < 0) {
node.left = this._addItem(node.left, newNode);
} else if (dir > 0) {
node.right = this._addItem(node.right, newNode);
} else {
console.warn('same item');
this.size--;
}
return node;
}
private createChartData(node: TreeNode): ChartData {
if (!node) {
return { name: '' };
}
let data: ChartData = {
name: node.item.num,
children: []
}
data.children![0] = this.createChartData(node.left);
data.children![1] = this.createChartData(node.right);
if (data.children!.every(item => item.name === '')) {
data.children = [];
}
return data;
}
show(): void {
let data: ChartData = this.createChartData(this.root);
option.series[0].data = [data];
myChart.setOption(option);
}
}
class AVLTree extends BTree {
constructor() {
super();
}
addItem(item: Item): void {
let newNode = this.createNode(item);
newNode!.height = 0;
this.root = this._addItem(this.root, newNode);
this.size++;
}
protected createNode(item: Item): TreeNode {
let newNode = super.createNode(item);
newNode!.height = 0;
return newNode;
}
protected _addItem(node: TreeNode, newNode: TreeNode): TreeNode {
if (!node) {
return newNode;
}
let dir: number = itemCompare(node.item, newNode!.item);
if (dir < 0) {
node.left = this._addItem(node.left, newNode);
if (this.getNodeHeight(node.left) - this.getNodeHeight(node.right) == 2) {
if (itemCompare(node.left!.item, newNode!.item) < 0) {
console.log('left single rotation');
return this.singleRotate(node, -1);
}
console.log('left double rotation');
return this.doubleRotate(node, -1);
}
} else if (dir > 0) {
node.right = this._addItem(node.right, newNode);
if (this.getNodeHeight(node.left) - this.getNodeHeight(node.right) == -2) {
if (itemCompare(node.right!.item, newNode!.item) < 0) {
console.log('right double rotation')
return this.doubleRotate(node, 1);
}
console.log('right single rotation');
return this.singleRotate(node, 1);
}
} else {
console.warn('same item');
this.size--;
}
node.height = Math.max(this.getNodeHeight(node.left), this.getNodeHeight(node.right)) + 1;
return node;
}
private getNodeHeight(node: TreeNode): number {
if (!node) {
return -1;
}
return node.height as number;
}
private singleRotate(parentNode: TreeNode, dir: number): TreeNode {
let childNode: TreeNode;
if (dir < 0) {
childNode = parentNode!.left;
parentNode!.left = childNode!.right;
childNode!.right = parentNode;
} else {
childNode = parentNode!.right;
parentNode!.right = childNode!.left;
childNode!.left = parentNode;
}
parentNode!.height = Math.max(this.getNodeHeight(parentNode!.left), this.getNodeHeight(parentNode!.right)) + 1;
childNode!.height = Math.max(this.getNodeHeight(childNode!.left), this.getNodeHeight(childNode!.right)) + 1;
return childNode;
}
private doubleRotate(parentNode: TreeNode, dir: number): TreeNode {
if (dir < 0) {
parentNode!.left = this.singleRotate(parentNode!.left, 1);
} else {
parentNode!.right = this.singleRotate(parentNode!.right, -1);
}
return this.singleRotate(parentNode, dir);
}
}
// 以下为驱动代码
function addItem(num: number) {
tree.addItem({ num });
tree.show();
}
const tree = new AVLTree();
function* main() {
let testcase = [3, 2, 1, 4, 5, 6, 7, 16, 15, 14, 13, 12, 11, 10, 8, 9];
// let testcase = [1, 10, 2, 9, 3, 8, 4, 7, 5, 6];
for (let num of testcase) {
addItem(num);
yield;
}
}
let gen = main();
function refresh() {
myChart.clear();
myChart.setOption(option);
}
----------------------------------------------------------------
