[GitHub] [incubator-linkis] peacewong opened a new pull request, #2291: Entrance support isolation by routing labels
peacewong opened a new pull request, #2291:
URL: https://github.com/apache/incubator-linkis/pull/2291
### What is the purpose of the change
close #2078
close #1803
### Brief change log
- Gateway supports routing and forwarding of execution requests for entrance;
- The instance label module supports the registration and modification of routing labels.
### Usage

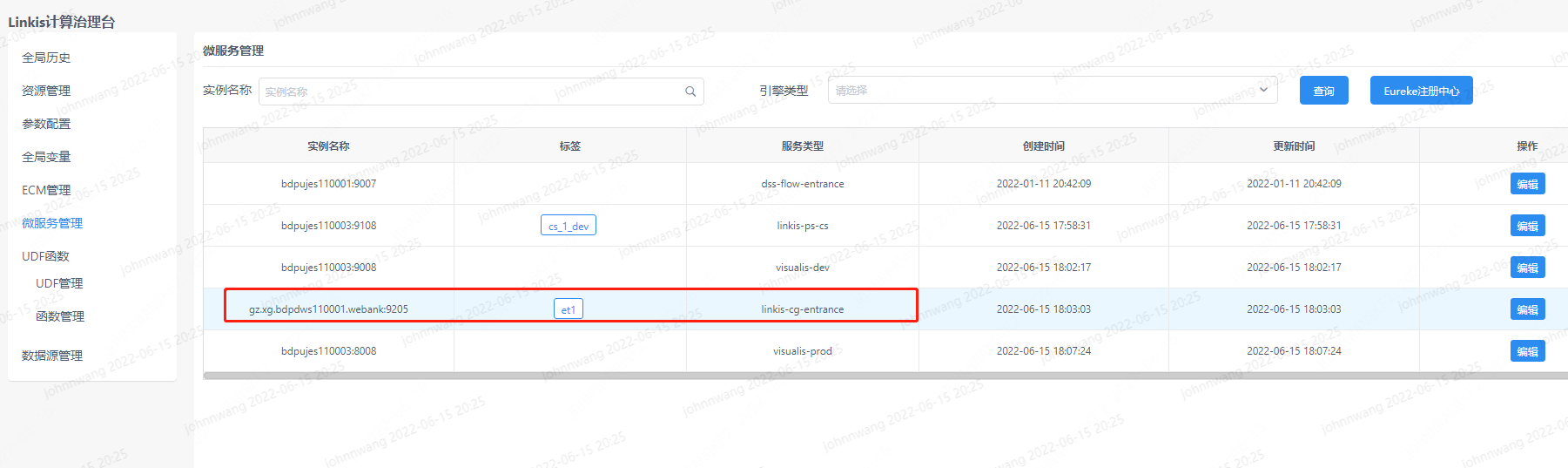

### add route label for entrance
```
echo "spring.eureka.instance.metadata-map.route=et1" >> $LINKIS_CONF_DIR/linkis-cg-entrance.properties
sh $LINKIS_HOME/sbin/linkis-damemon.sh restart cg-entrance
```
### Use route label
submit task:
```
url:/api/v1/entrance/submit
{
"executionContent": {"code": "echo 1", "runType": "shell"},
"params": {"variable": {}, "configuration": {}},
"source": {"scriptPath": "ip"},
"labels": {
"engineType": "shell-1",
"userCreator": "peacewong-IDE",
"route": "et1"
}
}
```
will be routed to a fixed service：
```
{
"method": "/api/entrance/submit",
"status": 0,
"message": "OK",
"data": {
"taskID": 45158,
"execID": "exec_id018030linkis-cg-entrancelocalhost:9205IDE_peacewong_shell_0"
}
}
```
or linkis-cli:
```
sh bin/linkis-cli -submitUser hadoop -engineType shell-1 -codeType shell -code "whoami" -labelMap route=et1 --gatewayUrl http://127.0.0.1:9101
```
### Use non-existing label
submit task:
```
url:/api/v1/entrance/submit
{
"executionContent": {"code": "echo 1", "runType": "shell"},
"params": {"variable": {}, "configuration": {}},
"source": {"scriptPath": "ip"},
"labels": {
"engineType": "shell-1",
"userCreator": "peacewong-IDE",
"route": "et1"
}
}
```
will get the error
```
{
"method": "/api/rest_j/v1/entrance/submit",
"status": 1,
"message": "GatewayErrorException: errCode: 11011 ,desc: Cannot route to the corresponding service, URL: /api/rest_j/v1/entrance/submit RouteLabel: [{\"stringValue\":\"et2\",\"labelKey\":\"route\",\"feature\":null,\"modifiable\":true,\"featureKey\":\"feature\",\"empty\":false}] ,ip: localhost ,port: 9101 ,serviceKind: linkis-mg-gateway",
"data": {
"data": "{\r\n \"executionContent\": {\"code\": \"echo 1\", \"runType\": \"shell\"},\r\n \"params\": {\"variable\": {}, \"configuration\": {}},\r\n \"source\": {\"scriptPath\": \"ip\"},\r\n \"labels\": {\r\n \"engineType\": \"shell-1\",\r\n \"userCreator\": \"peacewong-IDE\",\r\n \"route\": \"et2\"\r\n }\r\n}"
}
}
```
### without label
submit task:
```
url:/api/v1/entrance/submit
{
"executionContent": {"code": "echo 1", "runType": "shell"},
"params": {"variable": {}, "configuration": {}},
"source": {"scriptPath": "ip"},
"labels": {
"engineType": "shell-1",
"userCreator": "peacewong-IDE"
}
}
```
will route to untagged entry services
{
"method": "/api/entrance/submit",
"status": 0,
"message": "OK",
"data": {
"taskID": 45159,
"execID": "exec_id018018linkis-cg-entrancelocalhost2:9205IDE_peacewong_shell_0"
}
}
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
---------------------------------------------------------------------
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For additional commands, e-mail: notifications-help@linkis.apache.org
[GitHub] [incubator-linkis] CCweixiao commented on pull request #2291: Entrance support isolation by routing labels
Posted by GitBox <gi...@apache.org>.
CCweixiao commented on PR #2291:
URL: https://github.com/apache/incubator-linkis/pull/2291#issuecomment-1156474308
平哥，这个PR的功能没看太明白，是对entrance服务分组？不同路由标签的请求，分发到不同的entrance服务？
Brother Ping, I don't understand the function of this PR. Is it a grouping of entry services? Are requests for different routing labels distributed to different entry services?
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
---------------------------------------------------------------------
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For additional commands, e-mail: notifications-help@linkis.apache.org
[GitHub] [incubator-linkis] codecov[bot] commented on pull request #2291: Entrance support isolation by routing labels
Posted by GitBox <gi...@apache.org>.
codecov[bot] commented on PR #2291:
URL: https://github.com/apache/incubator-linkis/pull/2291#issuecomment-1156466436
# [Codecov](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=h1&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation) Report
> Merging [#2291](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=desc&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation) (3a57608) into [dev-1.2.0](https://codecov.io/gh/apache/incubator-linkis/commit/d2202a431875177d3def65e1d35a483c36d11357?el=desc&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation) (d2202a4) will **increase** coverage by `0.40%`.
> The diff coverage is `n/a`.
> :exclamation: Current head 3a57608 differs from pull request most recent head 945020b. Consider uploading reports for the commit 945020b to get more accurate results
```diff
@@ Coverage Diff @@
## dev-1.2.0 #2291 +/- ##
===============================================
+ Coverage 19.96% 20.36% +0.40%
- Complexity 1028 1040 +12
===============================================
Files 453 454 +1
Lines 13689 13797 +108
Branches 2149 2177 +28
===============================================
+ Hits 2733 2810 +77
- Misses 10592 10600 +8
- Partials 364 387 +23
```
| [Impacted Files](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation) | Coverage Δ | |
|---|---|---|
| [...ngineplugin/jdbc/JDBCDataSourceConfigurations.java](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9qYXZhL29yZy9hcGFjaGUvbGlua2lzL21hbmFnZXIvZW5naW5lcGx1Z2luL2pkYmMvSkRCQ0RhdGFTb3VyY2VDb25maWd1cmF0aW9ucy5qYXZh) | `18.18% <0.00%> (-1.82%)` | :arrow_down: |
| [...is/manager/engineplugin/jdbc/PropertiesParser.java](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9qYXZhL29yZy9hcGFjaGUvbGlua2lzL21hbmFnZXIvZW5naW5lcGx1Z2luL2pkYmMvUHJvcGVydGllc1BhcnNlci5qYXZh) | `62.50% <0.00%> (ø)` | |
| [...ugin/jdbc/executer/JDBCMultiDatasourceParser.scala](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9zY2FsYS9vcmcvYXBhY2hlL2xpbmtpcy9tYW5hZ2VyL2VuZ2luZXBsdWdpbi9qZGJjL2V4ZWN1dGVyL0pEQkNNdWx0aURhdGFzb3VyY2VQYXJzZXIuc2NhbGE=) | `48.88% <0.00%> (ø)` | |
| [...s/manager/engineplugin/jdbc/ConnectionManager.java](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9qYXZhL29yZy9hcGFjaGUvbGlua2lzL21hbmFnZXIvZW5naW5lcGx1Z2luL2pkYmMvQ29ubmVjdGlvbk1hbmFnZXIuamF2YQ==) | `43.12% <0.00%> (+1.89%)` | :arrow_up: |
| [...eplugin/jdbc/executer/JDBCEngineConnExecutor.scala](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9zY2FsYS9vcmcvYXBhY2hlL2xpbmtpcy9tYW5hZ2VyL2VuZ2luZXBsdWdpbi9qZGJjL2V4ZWN1dGVyL0pEQkNFbmdpbmVDb25uRXhlY3V0b3Iuc2NhbGE=) | `12.98% <0.00%> (+12.98%)` | :arrow_up: |
| [...ineplugin/jdbc/factory/JDBCEngineConnFactory.scala](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9zY2FsYS9vcmcvYXBhY2hlL2xpbmtpcy9tYW5hZ2VyL2VuZ2luZXBsdWdpbi9qZGJjL2ZhY3RvcnkvSkRCQ0VuZ2luZUNvbm5GYWN0b3J5LnNjYWxh) | `50.00% <0.00%> (+50.00%)` | :arrow_up: |
| [...ger/engineplugin/jdbc/conf/JDBCConfiguration.scala](https://codecov.io/gh/apache/incubator-linkis/pull/2291/diff?src=pr&el=tree&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation#diff-bGlua2lzLWVuZ2luZWNvbm4tcGx1Z2lucy9lbmdpbmVjb25uLXBsdWdpbnMvamRiYy9zcmMvbWFpbi9zY2FsYS9vcmcvYXBhY2hlL2xpbmtpcy9tYW5hZ2VyL2VuZ2luZXBsdWdpbi9qZGJjL2NvbmYvSkRCQ0NvbmZpZ3VyYXRpb24uc2NhbGE=) | `100.00% <0.00%> (+100.00%)` | :arrow_up: |
------
[Continue to review full report at Codecov](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=continue&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation).
> **Legend** - [Click here to learn more](https://docs.codecov.io/docs/codecov-delta?utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation)
> `Δ = absolute <relative> (impact)`, `ø = not affected`, `? = missing data`
> Powered by [Codecov](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=footer&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation). Last update [d2202a4...945020b](https://codecov.io/gh/apache/incubator-linkis/pull/2291?src=pr&el=lastupdated&utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation). Read the [comment docs](https://docs.codecov.io/docs/pull-request-comments?utm_medium=referral&utm_source=github&utm_content=comment&utm_campaign=pr+comments&utm_term=The+Apache+Software+Foundation).
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
---------------------------------------------------------------------
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For additional commands, e-mail: notifications-help@linkis.apache.org
[GitHub] [incubator-linkis] peacewong commented on pull request #2291: Entrance support isolation by routing labels
Posted by GitBox <gi...@apache.org>.
peacewong commented on PR #2291:
URL: https://github.com/apache/incubator-linkis/pull/2291#issuecomment-1157201515
> 平哥，这个PR的功能没看太明白，是对entrance服务分组？不同路由标签的请求，分发到不同的entrance服务？ Brother Ping, I don't understand the function of this PR. Is it a grouping of entry services? Are requests for different routing labels distributed to different entry services?
Yes, that's the feature
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
---------------------------------------------------------------------
To unsubscribe, e-mail: notifications-unsubscribe@linkis.apache.org
For additional commands, e-mail: notifications-help@linkis.apache.org
[GitHub] [incubator-linkis] CCweixiao merged pull request #2291: Entrance support isolation by routing labels
Posted by GitBox <gi...@apache.org>.
CCweixiao merged PR #2291:
URL: https://github.com/apache/incubator-linkis/pull/2291
--
