   After research, It's not simply to create this using the `renderItem` function. I found only examples using `rect`. In this case I want to use `line` with area to draw my lines.

   I used this article to understand how Horizon works : https://bernatgel.github.io/karyoploter_tutorial/Tutorial/PlotHorizon/PlotHorizon.html

   I test to cut my serie in 3 positive/negative parts. It works fine if I want to show them in different serie. But in the case they are in the same serie, it's very complicated to do that.

   Any help or example to do that ?

   For now This is my tests :

   ```js
   let base = +new Date(1988, 9, 3);
   let oneDay = 24 * 3600 * 1000;
   let data = [[base, Math.random() * 300]];
   for (let i = 1; i < 20000; i++) {
     let now = new Date((base += oneDay));
     data.push([+now, Math.round((Math.random() - 0.5) * 20 + data[i - 1][1])]);
   }

   // test horizon part
   const max = Math.max(...data.map(i => i[1]));
   const min = Math.min(...data.map(i => i[1]));
   const moreDelta = Math.max(Math.abs(max), Math.abs(min));
   const sectionSize = moreDelta / 3;
   const horizonSeries = {
     max3 : [],
     max2 : [],
     max1 : [],
     min1 : [],
     min2 : [],
     min3 : [],
   };

   data.forEach(item => {
     let palier = Math.floor(Math.abs(item[1]) / sectionSize);
     let section;

     if (palier >= 3) {
       palier = 2;
     }



     if (item[1] < 0) {
       section = `min${palier+1}`;
     } else {
       section = `max${palier+1}`;
     }

     horizonSeries[section].push([item[0], Math.abs(item[1])]);

     const sections = Object.keys(horizonSeries);

     sections.forEach(sectionName => {
       if (sectionName !== section) {
         horizonSeries[sectionName].push([item[0], null]);
       }
     })
   });

   console.log(max, min, moreDelta, sectionSize, horizonSeries);


   option = {
     tooltip: {
       trigger: 'axis',
       position: function (pt) {
         return [pt[0], '10%'];
       }
     },
     title: {
       left: 'center',
       text: 'Large Ara Chart'
     },
     toolbox: {
       feature: {
         dataZoom: {
           yAxisIndex: 'none'
         },
         restore: {},
         saveAsImage: {}
       }
     },
     xAxis: {
       type: 'time',
       boundaryGap: false
     },
     yAxis: {
       type: 'value',
       boundaryGap: [0, '100%']
     },
     dataZoom: [
       {
         type: 'inside',
         start: 0,
         end: 20
       },
       {
         start: 0,
         end: 20
       }
     ],
     series: [
       // {
       //   name: 'Fake Data',
       //   type: 'line',
       //   smooth: true,
       //   symbol: 'none',
       //   areaStyle: {},
       //   data: data
       // }
       {
         name : 'max3',
         type : 'line',
         symbol: 'none',
         areaStyle: {},
         data : horizonSeries.max3,
       },
       {
         name : 'max2',
         type : 'line',
         symbol: 'none',
         areaStyle: {},
         data : horizonSeries.max2,
       },
       {
         name : 'max1',
         type : 'line',
         symbol: 'none',
         areaStyle: {},
         data : horizonSeries.max1,
       },
       {
         name : 'min1',
         type : 'line',
         symbol: 'none',areaStyle: {},
         data : horizonSeries.min1,
       },
       {
         name : 'min2',
         type : 'line',
         symbol: 'none',
         areaStyle: {},
         data : horizonSeries.min2,
       },
       {
         name : 'min3',
         type : 'line',
         symbol: 'none',
         areaStyle: {},
         data : horizonSeries.min3,
       }
     ]
   };
   ```

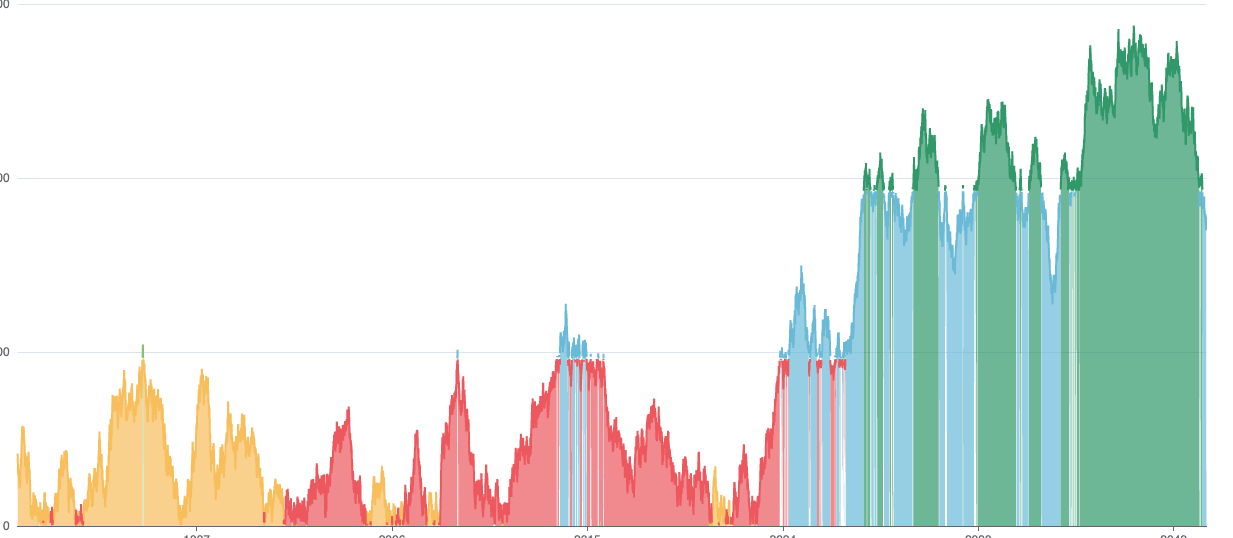

   And this is the render :

   ![image](https://user-images.githubusercontent.com/1394778/174603531-59edc1a1-01e0-421e-822c-94790d050913.png)



--
