Posted to notifications@apisix.apache.org by GitBox <gi...@apache.org> on 2022/06/21 01:42:41 UTC
[GitHub] [apisix] mygaochunming opened a new issue, #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
mygaochunming opened a new issue, #7288:
URL: https://github.com/apache/apisix/issues/7288
### Current Behavior
when using skywaking plugin, the proxy-rewrite plugin will become invalid
### Expected Behavior
The two plugins can be used together
### Error Logs
_No response_
### Steps to Reproduce
When using default configurations, the proxy-rewrite plugin can be responded correctly
Default configurations:
```
apisix:
node_listen: 9080 # APISIX listening port
enable_ipv6: false
allow_admin: # http://nginx.org/en/docs/http/ngx_http_access_module.html#allow
- 0.0.0.0/0 # We need to restrict ip access rules for security. 0.0.0.0/0 is for test.
admin_key:
- name: "admin"
key: edd1c9f034335f136f87ad84b625c8f1
role: admin # admin: manage all configuration data
# viewer: only can view configuration data
- name: "viewer"
key: 4054f7cf07e344346cd3f287985e76a2
role: viewer
enable_control: true
control:
ip: "0.0.0.0"
port: 9092
etcd:
host: # it's possible to define multiple etcd hosts addresses of the same etcd cluster.
- "http://etcd:2379" # multiple etcd address
prefix: "/apisix" # apisix configurations prefix
timeout: 30 # 30 seconds
```
The route
```
{
"uri": "/testProxyRewrite",
"name": "testProxyRewrite",
"methods": [
"GET",
"POST",
"PUT",
"DELETE",
"PATCH",
"HEAD",
"OPTIONS",
"CONNECT",
"TRACE"
],
"plugins": {
"proxy-rewrite": {
"uri": "/demo2"
}
},
"upstream": {
"nodes": [
{
"host": "192.168.8.88",
"port": 8083,
"weight": 1
}
],
"timeout": {
"connect": 6,
"send": 6,
"read": 6
},
"type": "roundrobin",
"scheme": "http",
"pass_host": "pass",
"keepalive_pool": {
"idle_timeout": 60,
"requests": 1000,
"size": 320
}
},
"status": 1
}
```
When enabled the skywalking plugin , the proxy-rewrite plugin will become invalid.
Enabled skywalking plugin
```
apisix:
node_listen: 9080 # APISIX listening port
enable_ipv6: false
allow_admin: # http://nginx.org/en/docs/http/ngx_http_access_module.html#allow
- 0.0.0.0/0 # We need to restrict ip access rules for security. 0.0.0.0/0 is for test.
admin_key:
- name: "admin"
key: edd1c9f034335f136f87ad84b625c8f1
role: admin # admin: manage all configuration data
# viewer: only can view configuration data
- name: "viewer"
key: 4054f7cf07e344346cd3f287985e76a2
role: viewer
enable_control: true
control:
ip: "0.0.0.0"
port: 9092
etcd:
host: # it's possible to define multiple etcd hosts addresses of the same etcd cluster.
- "http://etcd:2379" # multiple etcd address
prefix: "/apisix" # apisix configurations prefix
timeout: 30 # 30 seconds
plugin_attr:
skywalking:
service_name: APISIX
service_instance_name: "APISIX Instance Name"
endpoint_addr: http://192.168.8.88:12800
plugins:
- skywalking
```
And the route unchanged
Then the proxy-rewrite plugin become invalid.
`{"timestamp":"2022-06-21T01:32:43.997+00:00","status":404,"error":"Not Found","path":"/testProxyRewrite"}`
### Environment
- APISIX version (run `apisix version`): 2.14.0(using docker)
- Operating system (run `uname -a`): Linux test-lxw 3.10.0-1127.el7.x86_64
- OpenResty / Nginx version (run `openresty -V` or `nginx -V`): nginx version: openresty/1.19.9.1
- etcd version, if relevant (run `curl http://127.0.0.1:9090/v1/server_info`):
- APISIX Dashboard version, if relevant:
- Plugin runner version, for issues related to plugin runners:
- LuaRocks version, for installation issues (run `luarocks --version`):
![image](https://user-images.githubusercontent.com/21029140/174698787-3cc4a40c-3170-4f5b-85a1-cb51cc3c3c69.png)
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@apisix.apache.org.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [apisix] mygaochunming closed issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
Posted by GitBox <gi...@apache.org>.
mygaochunming closed issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
URL: https://github.com/apache/apisix/issues/7288
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@apisix.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [apisix] spacewander commented on issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
Posted by GitBox <gi...@apache.org>.
spacewander commented on issue #7288:
URL: https://github.com/apache/apisix/issues/7288#issuecomment-1161306484
```
plugins:
- skywalking
```
You need to add all the plugins you need, instead of skywalking only. The `plugins` field should include all the plugins you need.
See: https://apisix.apache.org/docs/apisix/plugins/skywalking#how-to-enable
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@apisix.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [apisix] mygaochunming commented on issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
Posted by GitBox <gi...@apache.org>.
mygaochunming commented on issue #7288:
URL: https://github.com/apache/apisix/issues/7288#issuecomment-1161506317
![image](https://user-images.githubusercontent.com/21029140/174767301-597a5cf4-bef9-4316-ac21-4fd088bb66e9.png)

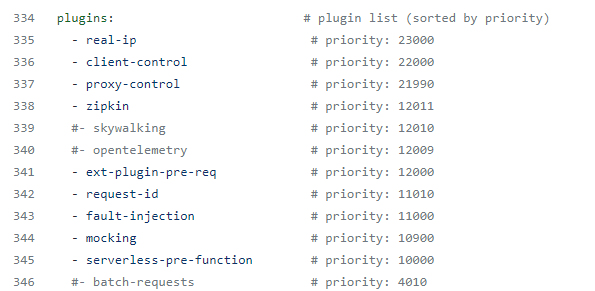

I think this will be treated as array, and will be overwrite as a whole
![image](https://user-images.githubusercontent.com/21029140/174767617-e49469b0-e828-47e1-9ecd-391d4e6443a6.png)
and this will be overwrite not as a whole but specific item,such as just overwrite a single item
```
plugin_attr:
log-rotate:
interval: 3600
```
Am I right?
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@apisix.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [apisix] mygaochunming commented on issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
Posted by GitBox <gi...@apache.org>.
mygaochunming commented on issue #7288:
URL: https://github.com/apache/apisix/issues/7288#issuecomment-1161490309
> ```
> plugins:
> - skywalking
> ```
>
> You need to add all the plugins you need, instead of skywalking only. The `plugins` field should include all the plugins you need.
>
> See: https://apisix.apache.org/docs/apisix/plugins/skywalking#how-to-enable
Thanks very much. I have solved this problem.
I have seen the "merge_conf" function, and I think the users' configurations will overwrite the default configurations under certain rules. But I don't quite understand what this code means
https://github.com/apache/apisix/blob/fdd1cac7328879cb848f93bba4d3bb37c50dcdc7/apisix/cli/file.lua#L144
Can you help to explain?
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: notifications-unsubscribe@apisix.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [apisix] tzssangglass commented on issue #7288: bug: when using skywaking plugin, the proxy-rewrite plugin will become invalid
Posted by GitBox <gi...@apache.org>.
tzssangglass commented on issue #7288:
URL: https://github.com/apache/apisix/issues/7288#issuecomment-1162563449
As already discussed, this will not disable specific plugins.
--
