[GitHub] [royale-asjs] pashminakazi opened a new issue #1137: DataGrid is not resizable
pashminakazi opened a new issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137
[DataGridIssue.zip](https://github.com/apache/royale-asjs/files/6870081/DataGridIssue.zip)
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [royale-asjs] pashminakazi commented on issue #1137: DataGrid is not resizable
Posted by GitBox <gi...@apache.org>.
pashminakazi commented on issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137#issuecomment-888935860

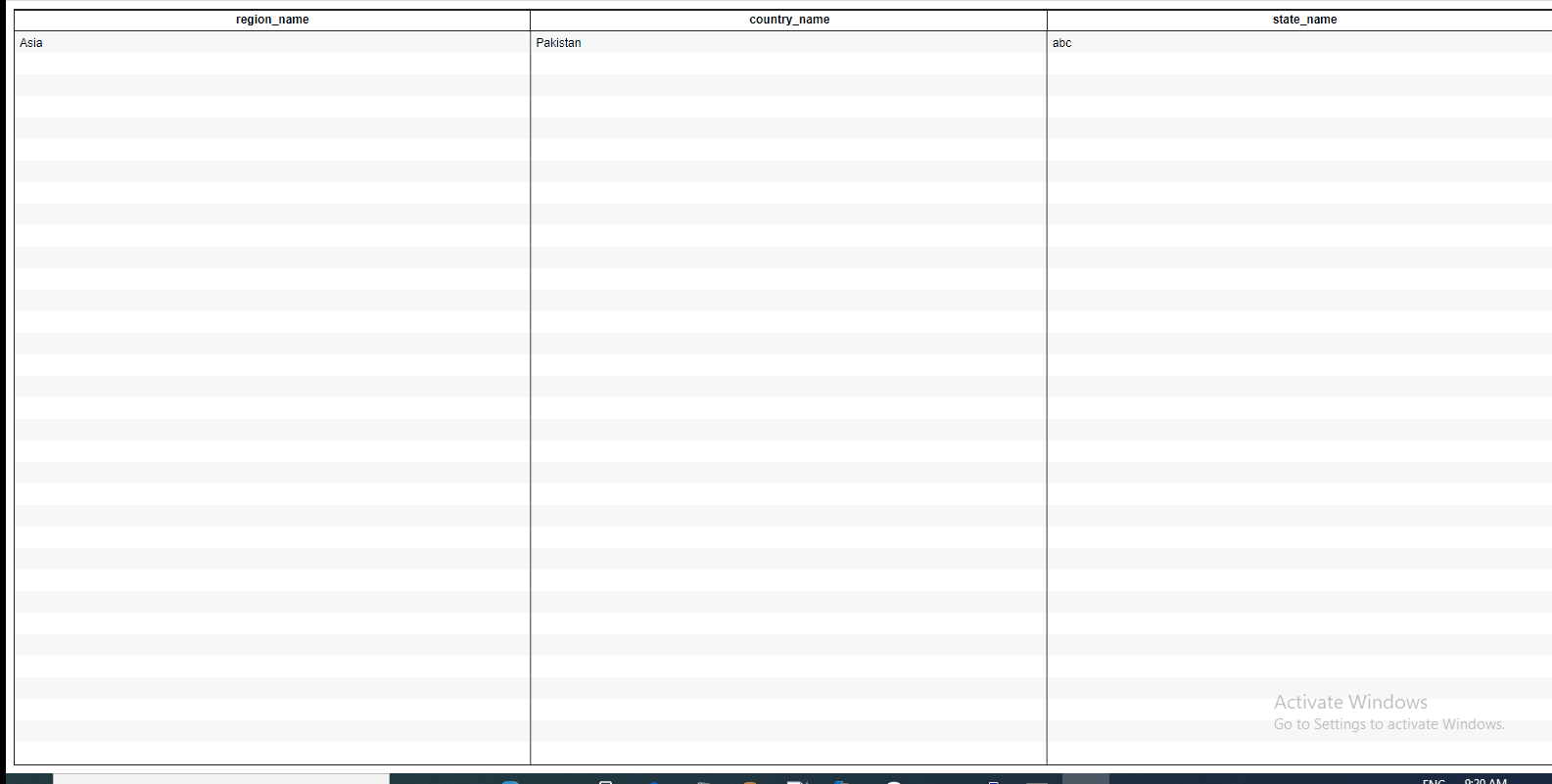

@yishayw Please see video and File for better understanding
File : https://paste.apache.org/uw31b

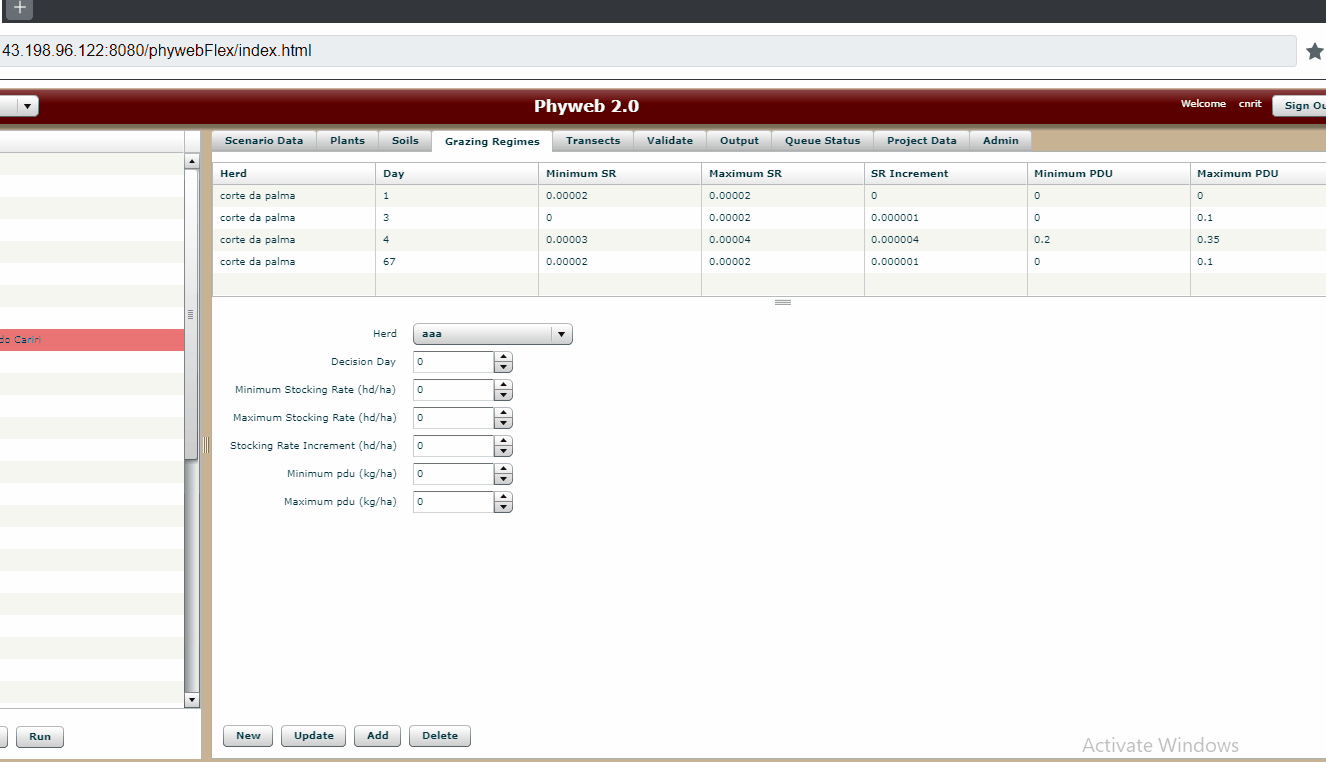

Comparison between Flex and Royale :
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [royale-asjs] Harbs commented on issue #1137: DataGrid is not resizable
Posted by GitBox <gi...@apache.org>.
Harbs commented on issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137#issuecomment-899441146
FWIW, here's an implementation in Spectrum:
https://unhurdle.github.io/spectrum-royale/#!splitview
https://github.com/unhurdle/spectrum-royale/blob/master/Spectrum/src/com/unhurdle/spectrum/VSplitView.as
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [royale-asjs] yishayw commented on issue #1137: DataGrid is not resizable
Posted by GitBox <gi...@apache.org>.
yishayw commented on issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137#issuecomment-886599587
@pashminakazi I'm not sure what the issue is here. Do you need DividedBox to be implemented?
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [royale-asjs] yishayw commented on issue #1137: DataGrid is not resizable
Posted by GitBox <gi...@apache.org>.
yishayw commented on issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137#issuecomment-899538089
I imagine these 2 implementations will probably suffice for many real use cases. I also created a ‘divided’ branch that has an implementation borrowed from Flex, which should also handle multiple (more than 2) children cases. There are some bugs there though. If anyone wants to finish the emulation job for DividedBox s/he will have more than one source to work from.
From: ***@***.***>
Sent: Monday, August 16, 2021 2:38 PM
To: ***@***.***>
Cc: ***@***.***>; ***@***.***>
Subject: Re: [apache/royale-asjs] DataGrid is not resizable (#1137)
FWIW, here's an implementation in Spectrum:
https://unhurdle.github.io/spectrum-royale/#!splitview
https://github.com/unhurdle/spectrum-royale/blob/master/Spectrum/src/com/unhurdle/spectrum/VSplitView.as
—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub<https://github.com/apache/royale-asjs/issues/1137#issuecomment-899441146>, or unsubscribe<https://github.com/notifications/unsubscribe-auth/AAQBE7KRYFKONWL4G3336ALT5D2DRANCNFSM5A4KHBDA>.
Triage notifications on the go with GitHub Mobile for iOS<https://apps.apple.com/app/apple-store/id1477376905?ct=notification-email&mt=8&pt=524675> or Android<https://play.google.com/store/apps/details?id=com.github.android&utm_campaign=notification-email>.
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
[GitHub] [royale-asjs] aharui commented on issue #1137: DataGrid is not resizable
Posted by GitBox <gi...@apache.org>.
aharui commented on issue #1137:
URL: https://github.com/apache/royale-asjs/issues/1137#issuecomment-899201559
Here's a rudimentary prototype: I modified DividedBox.as to override addElement so it will insert a divider element after the first child.
```
////////////////////////////////////////////////////////////////////////////////
//
// Licensed to the Apache Software Foundation (ASF) under one or more
// contributor license agreements. See the NOTICE file distributed with
// this work for additional information regarding copyright ownership.
// The ASF licenses this file to You under the Apache License, Version 2.0
// (the "License"); you may not use this file except in compliance with
// the License. You may obtain a copy of the License at
//
// http://www.apache.org/licenses/LICENSE-2.0
//
// Unless required by applicable law or agreed to in writing, software
// distributed under the License is distributed on an "AS IS" BASIS,
// WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
// See the License for the specific language governing permissions and
// limitations under the License.
//
////////////////////////////////////////////////////////////////////////////////
package mx.containers
{
/*
import flash.display.DisplayObject;
import flash.events.Event;
import flash.events.MouseEvent;
import flash.geom.Point;
import mx.containers.dividedBoxClasses.BoxDivider;
import mx.core.EdgeMetrics;
import mx.core.IFlexDisplayObject;
import mx.core.IFlexModuleFactory;
import mx.core.IInvalidating;
*/
import org.apache.royale.core.IChild;
import org.apache.royale.events.Event;
import org.apache.royale.events.MouseEvent;
import mx.containers.beads.BoxLayout;
import mx.containers.beads.DividedBoxLayout;
import mx.core.IUIComponent;
import mx.core.UIComponent;
/*
import mx.core.mx_internal;
import mx.events.ChildExistenceChangedEvent;
import mx.events.DividerEvent;
import mx.managers.CursorManager;
import mx.managers.CursorManagerPriority;
import mx.styles.IStyleManager2;
import mx.styles.StyleManager;
use namespace mx_internal;
*/
//--------------------------------------
// Events
//--------------------------------------
/**
* Dispatched multiple times as the user drags any divider.
*
* The <code>dividerDrag</code> event is dispatched
* after the <code>dividerPress</code> event
* and before the <code>dividerRelease</code> event.
*
* @eventType mx.events.DividerEvent.DIVIDER_DRAG
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
//[Event(name="dividerDrag", type="mx.events.DividerEvent")]
/**
* Dispatched when the user presses any divider in this container.
*
* The <code>dividerPress</code> event is dispatched
* before any <code>dividerDrag</code> events are dispatched.
*
* @eventType mx.events.DividerEvent.DIVIDER_PRESS
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
//[Event(name="dividerPress", type="mx.events.DividerEvent")]
/**
* Dispatched when the user releases a divider.
*
* The <code>dividerRelease</code> event is dispatched
* after the <code>dividerDrag</code> events,
* but before the container's children are resized.
* The divider's x and y properties are not updated until
* after this event is triggered. As a result, a call to
* <code>hDividerBox.getDividerAt(0).x</code> will return
* the value of the original x position of the first divider. If you want the
* position of the divider after the move, you can access it when the
* DividerBox's updateComplete event has been triggered.
*
* @eventType mx.events.DividerEvent.DIVIDER_RELEASE
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
[Event(name="dividerRelease", type="mx.events.DividerEvent")]
/**
* A DividedBox container measures and lays out its children
* horizontally or vertically in exactly the same way as a
* Box container, but it inserts
* draggable dividers in the gaps between the children.
* Users can drag any divider to resize the children on each side.
*
* <p>The DividedBox class is the base class for the more commonly used
* HDividedBox and VDividedBox classes.</p>
*
* <p>The <code>direction</code> property of a DividedBox container, inherited
* from Box container, determines whether it has horizontal
* or vertical layout.</p>
*
* <p>A DividedBox, HDividedBox, or VDividedBox container has the following default sizing characteristics:</p>
* <table class="innertable">
* <tr>
* <th>Characteristic</th>
* <th>Description</th>
* </tr>
* <tr>
* <td>Default size</td>
* <td><strong>Vertical DividedBox</strong> Height is large enough to hold all of its children at the default or explicit
* heights of the children, plus any vertical gap between the children, plus the top and bottom padding of the
* container. The width is the default or explicit width of the widest child, plus the left and right padding of
* the container.
* <br><strong>Horizontal DividedBox</strong> Width is large enough to hold all of its children at the
* default or explicit widths of the children, plus any horizontal gap between the children, plus the left and
* right padding of the container. Height is the default or explicit height of the tallest child
* plus the top and bottom padding of the container.</br></td>
* </tr>
* <tr>
* <td>Default padding</td>
* <td>0 pixels for the top, bottom, left, and right values.</td>
* </tr>
* <tr>
* <td>Default gap</td>
* <td>10 pixels for the horizontal and vertical gaps.</td>
* </tr>
* </table>
*
* @mxml
*
* <p>The <code><mx:DividedBox></code> tag inherits all of the tag
* attributes of its superclass, and adds the following tag attributes:</p>
*
* <pre>
* <mx:DividedBox
* <strong>Properties</strong>
* liveDragging="false|true"
* resizeToContent="false|true"
*
* <strong>Styles</strong>
* dividerAffordance="6"
* dividerAlpha="0.75"
* dividerColor="0x6F7777"
* dividerSkin="<i>'mx.skins.BoxDividerSkin' symbol in Assets.swf</i>"
* dividerThickness="3"
* horizontalDividerCursor="<i>'mx.skins.cursor.HBoxDivider' symbol in Assets.swf</i>"
* verticalDividerCursor="<i>'mx.skins.cursor.VBoxDivider' symbol in Assets.swf</i>"
*
* <strong>Events</strong>
* dividerPress="<i>No default</i>"
* dividerDrag="<i>No default</i>"
* dividerRelease="<i>No default</i>"
* >
* ...
* <i>child tags</i>
* ...
* </mx:DividedBox>
* </pre>
*
* @see mx.containers.HDividedBox
* @see mx.containers.VDividedBox
*
* @includeExample examples/DividedBoxExample.mxml
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
public class DividedBox extends Box
{
//--------------------------------------------------------------------------
//
// Class constants
//
//--------------------------------------------------------------------------
/**
* @private
*/
private static const PROXY_DIVIDER_INDEX:int = 999;
//--------------------------------------------------------------------------
//
// Constructor
//
//--------------------------------------------------------------------------
/**
* Constructor.
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
public function DividedBox()
{
super();
// addEventListener(ChildExistenceChangedEvent.CHILD_ADD, childAddHandler);
// addEventListener(ChildExistenceChangedEvent.CHILD_REMOVE,
// childRemoveHandler);
}
override protected function createLayout():void
{
_layout = new DividedBoxLayout();
}
//--------------------------------------------------------------------------
//
// Variables
//
//--------------------------------------------------------------------------
/**
* @private
* Container for holding divider objects.
*/
private var dividerLayer:UIComponent = null;
/**
* @private
*/
//mx_internal var activeDivider:BoxDivider;
/**
* @private
*/
private var activeDividerIndex:int = -1;
/**
* @private
*/
private var activeDividerStartPosition:Number;
/**
* @private
*/
private var dragStartPosition:Number;
/**
* @private
*/
private var dragDelta:Number;
/**
* @private
*/
private var oldChildSizes:Array /* of ChildSizeInfo */;
/**
* @private
*/
private var minDelta:Number;
/**
* @private
*/
private var maxDelta:Number;
/**
* @private
* Only allow a single divider to move at a time.
*/
private var dontCoalesceDividers:Boolean;
/**
* @private
*/
//private var cursorID:int = CursorManager.NO_CURSOR;
/**
* @private
* We'll measure ourselves once and then store the results here
* for the lifetime of the DividedBox.
*/
private var dbMinWidth:Number;
private var dbMinHeight:Number;
private var dbPreferredWidth:Number;
private var dbPreferredHeight:Number;
/**
* @private
*/
private var layoutStyleChanged:Boolean = false;
/**
* @private
*/
private var _resizeToContent:Boolean = false;
/**
* @private
* Number of children with their includeInLayout set to true. The rest of
* the children don't count.
*/
private var numLayoutChildren:int = 0;
//--------------------------------------------------------------------------
//
// Overridden Properties
//
//--------------------------------------------------------------------------
/**
* @private
*/
// override public function set moduleFactory(moduleFactory:IFlexModuleFactory):void
// {
// super.moduleFactory = moduleFactory;
//
// styleManager.registerSizeInvalidatingStyle("dividerAffordance");
// styleManager.registerSizeInvalidatingStyle("dividerThickness");
// }
//--------------------------------------------------------------------------
//
// Properties
//
//--------------------------------------------------------------------------
//----------------------------------
// direction
//----------------------------------
/**
* @private
*/
override public function set direction(value:String):void
{
if (super.direction != value)
{
super.direction = value;
// Need to invalidate all our dividers
// if (dividerLayer)
// {
// for (var i:int = 0; i < dividerLayer.numChildren; i++)
// getDividerAt(i).invalidateDisplayList();
// }
}
}
//----------------------------------
// dividerClass
//----------------------------------
/**
* The class for the divider between the children.
*
* @default mx.containers.dividedBoxClasses.BoxDivider
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
// protected var dividerClass:Class = BoxDivider;
//----------------------------------
// liveDragging
//----------------------------------
// [Inspectable(category="General")]
/**
* If <code>true</code>, the children adjacent to a divider
* are continuously resized while the user drags it.
* If <code>false</code>, they are not resized
* until the user releases the divider.
* @default false
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
// public var liveDragging:Boolean = false;
//----------------------------------
// numDividers
//----------------------------------
/**
* The number of dividers.
* The count is always <code>numChildren</code> - 1.
*
* @return The number of dividers.
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
public function get numDividers():int
{
// if (dividerLayer)
// if (!liveDragging && activeDivider)
// return dividerLayer.numChildren-1;
// else
// return dividerLayer.numChildren;
// else
// return 0;
trace("numDividers not implemented");
return 0;
}
//----------------------------------
// resizeToContent
//----------------------------------
/**
* If <code>true</code>, the DividedBox automatically resizes to the size
* of its children.
* @default false
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
public function get resizeToContent():Boolean
{
return _resizeToContent;
}
/**
* @private
*/
public function set resizeToContent(value:Boolean):void
{
if (value != _resizeToContent)
{
_resizeToContent = value;
if (value)
invalidateSize();
}
}
private var divider:UIComponent;
private var lastY:Number;
private function divider_mouseDownHandler(event:MouseEvent):void
{
lastY = event.localY;
divider.addEventListener(MouseEvent.MOUSE_MOVE, divider_mouseMoveHandler);
divider.addEventListener(MouseEvent.MOUSE_UP, divider_mouseUpHandler);
}
private function divider_mouseUpHandler(event:MouseEvent):void
{
divider.removeEventListener(MouseEvent.MOUSE_MOVE, divider_mouseMoveHandler);
divider.removeEventListener(MouseEvent.MOUSE_UP, divider_mouseUpHandler);
}
private function divider_mouseMoveHandler(event:MouseEvent):void
{
var topContainer:UIComponent = getElementAt(0) as UIComponent;
topContainer.height += event.localY - lastY;
dispatchEvent(new Event("layoutNeeded"));
}
/**
* @private
* @royaleignorecoercion mx.containers.beads.PanelView
*/
override public function addElement(c:IChild, dispatchEvent:Boolean = true):void
{
if (super.numElements == 0)
{
super.addElement(c, dispatchEvent);
divider = new UIComponent();
divider.percentWidth = 100;
divider.height = 20;
divider.backgroundColor="#00ff00";
divider.addEventListener(MouseEvent.MOUSE_DOWN, divider_mouseDownHandler);
super.addElement(divider, false);
}
else
super.addElement(c, dispatchEvent);
}
//--------------------------------------------------------------------------
//
// Overridden methods
//
//--------------------------------------------------------------------------
/**
* @private
* Override of the measure method of Box.
*
* <p>This function is almost identical to the Box version except
* that more extensive testing of the min, max
* boundary conditions is performed. This is because the DividedBox allows
* default values to be less than the min value of a control.</p>
*/
// override protected function measure():void
// {
// super.measure();
//
// // We only measure ourselves once, since as we change the
// // size of children, they in turn change the preferred sizes
// //
// // We need to copy the cached values into the measured fields
// // again to handle the case where scaleX or scaleY is not 1.0.
// // When the ViewStack is zoomed, code in UIComponent.measureSizes
// // scales the measuredWidth/Height values every time that
// // measureSizes is called. (Bug 100749)
// if (!isNaN(dbPreferredWidth) && !_resizeToContent && !layoutStyleChanged)
// {
// measuredMinWidth = dbMinWidth;
// measuredMinHeight = dbMinHeight;
// measuredWidth = dbPreferredWidth;
// measuredHeight = dbPreferredHeight;
// return;
// }
//
// layoutStyleChanged = false;
//
// var isVertical:Boolean = this.isVertical();
// var minWidth:Number = 0;
// var minHeight:Number = 0;
// var preferredWidth:Number = 0;
// var preferredHeight:Number = 0;
//
// var n:int = numChildren;
// for (var i:int = 0; i < n; i++)
// {
// var child:IUIComponent = getLayoutChildAt(i);
//
// if (!child.includeInLayout)
// continue;
//
// var prefW:Number = child.getExplicitOrMeasuredWidth();
// var prefH:Number = child.getExplicitOrMeasuredHeight();
//
// var minW:Number = child.minWidth;
// var minH:Number = child.minHeight;
//
// var wFlex:Boolean = !isNaN(child.percentWidth);
// var hFlex:Boolean = !isNaN(child.percentHeight);
//
// // Make sure we take the lowest of the low, since pref < min.
// var smallestMinW:Number = Math.min(prefW, minW);
// var smallestMinH:Number = Math.min(prefH, minH);
//
// if (isVertical)
// {
// minWidth = Math.max(wFlex ? minW : prefW, minWidth);
// preferredWidth = Math.max(prefW, preferredWidth);
// minHeight += hFlex ? smallestMinH : prefH;
// preferredHeight += prefH;
// }
// else
// {
// minWidth += wFlex ? smallestMinW : prefW;
// preferredWidth += prefW;
// minHeight = Math.max(hFlex ? minH : prefH, minHeight);
// preferredHeight = Math.max(prefH, preferredHeight);
// }
// }
//
// var wPadding:Number = layoutObject.widthPadding(numLayoutChildren);
// var hPadding:Number = layoutObject.heightPadding(numLayoutChildren);
//
// measuredMinWidth = dbMinWidth = minWidth + wPadding;
// measuredMinHeight = dbMinHeight = minHeight + hPadding;
// measuredWidth = dbPreferredWidth = preferredWidth + wPadding;
// measuredHeight = dbPreferredHeight = preferredHeight + hPadding;
// }
/**
* @private
*/
// override protected function updateDisplayList(unscaledWidth:Number,
// unscaledHeight:Number):void
// {
// var n:int;
// var i:int;
//
// // This method gets called while dragging a divider,
// // but we don't want to do anything then.
// if (!liveDragging && activeDivider)
// {
// n = numChildren;
// for (i = 0; i < n; i++)
// {
// var child:IUIComponent = getLayoutChildAt(i);
//
// if (!child.includeInLayout)
// continue;
//
// // Clear out measured min/max
// // so super.layout() doesn't use them.
// child.measuredMinWidth = 0;
// child.measuredMinHeight = 0;
// }
// return;
// }
//
// // Before we allow layout, let's clear out any measured min
// // values of our children so that they don't restrict us.
// // We only honour explicitly set mins/maxs.
// // We also try to remove any excess space, but tweaking
// // the % values on the flexible components.
// preLayoutAdjustment();
//
// // Let Box lay out the children.
// super.updateDisplayList(unscaledWidth, unscaledHeight);
//
// postLayoutAdjustment();
//
// // Lay out the dividers.
// if (!dividerLayer)
// return;
//
// var vm:EdgeMetrics = viewMetrics;
//
// dividerLayer.x = vm.left;
// dividerLayer.y = vm.top;
//
// var prevChild:IUIComponent = null;
// var dividerIndex:int = 0;
// n = numChildren;
// for (i = 0; i < n; i++)
// {
// child = UIComponent(getChildAt(i));
// if (child.includeInLayout)
// {
// if (prevChild)
// {
// layoutDivider(dividerIndex, unscaledWidth, unscaledHeight, prevChild, child);
// dividerIndex++;
// }
// prevChild = child;
// }
// }
// }
/**
* @private
*/
// override protected function scrollChildren():void
// {
// super.scrollChildren();
//
// // Scroll divider layer.
// if (contentPane && dividerLayer)
// dividerLayer.scrollRect = contentPane.scrollRect;
// }
//--------------------------------------------------------------------------
//
// Methods
//
//--------------------------------------------------------------------------
/**
* Returns a reference to the specified BoxDivider object
* in this DividedBox container or null if it doesn't exist.
*
* @param i Zero-based index of a divider, counting from
* the left for a horizontal DividedBox,
* or from the top for a vertical DividedBox.
*
* @return A BoxDivider object.
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
// public function getDividerAt(i:int):BoxDivider
// {
// if (dividerLayer) {
// // Check whether this is a valid divider index.
// if (i < 0 || i >= dividerLayer.numChildren)
// return null;
// else
// return BoxDivider(dividerLayer.getChildAt(i));
// }
// else {
// return null;
// }
// }
/**
* Move a specific divider a given number of pixels.
*
* @param i Zero-based index of a divider, counting from
* the left for a horizontal DividedBox,
* or from the top for a vertical DividedBox.
*
* @param amt The number of pixels to move the divider.
* A negative number can be specified in order to move
* a divider up or left. The divider movement is
* constrained in the same manner as if a user
* had moved it.
*
* @langversion 3.0
* @playerversion Flash 9
* @playerversion AIR 1.1
* @productversion Flex 3
*/
// public function moveDivider(i:int, amt:Number):void
// {
// // Check whether this is a valid divider index.
// if (i < 0 || i >= numDividers)
// return;
//
// // Make sure the user is not currently dragging.
// if (activeDividerIndex >= 0)
// return;
//
// // We have to first hit the children if we haven't
// // yet done so since the first movement .
//
// // Mimic a divider moving.
// activeDividerIndex = i;
//
// // Store away child sizes,
// // then determine the limits on our movement.
// cacheChildSizes();
// computeMinAndMaxDelta();
// dragDelta = limitDelta(amt);
//
// // Now update the children sizes accordingly.
// adjustChildSizes();
//
// invalidateSize();
// invalidateDisplayList();
//
// // Reset the divider tracking stuff.
// resetDividerTracking();
// }
/**
* @private
*/
// private function createDivider(i:int):BoxDivider
// {
// // Create separate layer for holding divider objects.
// if (!dividerLayer)
// {
// dividerLayer = UIComponent(rawChildren.addChild(new UIComponent()));
// }
//
// var divider:BoxDivider = BoxDivider(new dividerClass());
// dividerLayer.addChild(divider);
//
// // if we are creating the active divider bring the divider layer
// // to the top most so that users can see the divider line over
// // the other children
// if (i == PROXY_DIVIDER_INDEX)
// {
// rawChildren.setChildIndex(dividerLayer,
// rawChildren.numChildren-1);
// }
//
// // Tell BoxDivider to use DividedBox's styles,
// // unless we are sliding the divider; in that case,
// // use the styles of the divider we are sliding.
// var basedOn:IFlexDisplayObject = (i == PROXY_DIVIDER_INDEX) ?
// getDividerAt(activeDividerIndex) :
// this;
//
// divider.styleName = basedOn;
//
// divider.owner = this;
//
// return divider;
// }
/**
* @private
*/
private function layoutDivider(i:int,
unscaledWidth:Number,
unscaledHeight:Number,
prevChild:IUIComponent,
nextChild:IUIComponent):void
{
// The mouse-over thickness of the divider is normally determined
// by the dividerAffordance style, and the visible thickness is
// normally determined by the dividerThickness style, assuming that
// the relationship thickness <= affordance <= gap applies. But if
// one of the other five orderings applies, here is a table of what
// happens:
//
// divider divider horizontalGap/ dividerWidth/ visible width/
// Thickness Affordance verticalGap dividerHeight visible height
//
// 4 6 8 6 4
// 4 8 6 6 4
// 6 4 8 6 6
// 6 8 4 4 4
// 8 4 6 6 6
// 8 6 4 4 4
// var divider:BoxDivider = BoxDivider(getDividerAt(i));
//
// var vm:EdgeMetrics = viewMetrics;
//
// var verticalGap:Number = getStyle("verticalGap");
// var horizontalGap:Number = getStyle("horizontalGap");
//
// var thickness:Number = divider.getStyle("dividerThickness");
// var affordance:Number = divider.getStyle("dividerAffordance");
//
// if (isVertical())
// {
// var dividerHeight:Number = affordance;
// // dividerHeight is the mouse-over height,
// // not necessarily the visible height.
//
// // The specified affordance should be greater than the thickness.
// // But if it isn't, use the thickness instead to determine the
// // divider height.
// if (dividerHeight < thickness)
// dividerHeight = thickness;
//
// // Don't let the divider overlap the children.
// if (dividerHeight > verticalGap)
// dividerHeight = verticalGap;
//
// divider.setActualSize(unscaledWidth - vm.left - vm.right, dividerHeight);
//
// divider.move(vm.left,
// Math.round((prevChild.y + prevChild.height +
// nextChild.y - dividerHeight) / 2));
// }
// else
// {
// var dividerWidth:Number = affordance;
// // dividerWidth is the mouse-over width,
// // not necessarily the visible width.
//
// // The specified affordance should be greater than the thickness.
// // But if it isn't, use the thickness instead to determine the
// // divider width.
// if (dividerWidth < thickness)
// dividerWidth = thickness;
//
// // Don't let the divider overlap the children.
// if (dividerWidth > horizontalGap)
// dividerWidth = horizontalGap;
//
// divider.setActualSize(dividerWidth, unscaledHeight - vm.top - vm.bottom);
//
// divider.move(Math.round((prevChild.x + prevChild.width +
// nextChild.x - dividerWidth) / 2),
// vm.top);
// }
//
// divider.invalidateDisplayList();
}
/**
* @private
*/
// mx_internal function changeCursor(divider:BoxDivider):void
// {
// if (cursorID == CursorManager.NO_CURSOR)
// {
// // If a cursor skin has been set for the specified BoxDivider,
// // use it. Otherwise, use the cursor skin for the DividedBox.
// var cursorClass:Class = isVertical() ?
// getStyle("verticalDividerCursor") as Class :
// getStyle("horizontalDividerCursor") as Class;
//
// cursorID = cursorManager.setCursor(cursorClass,
// CursorManagerPriority.HIGH, 0, 0);
// }
// }
/**
* @private
*/
// mx_internal function restoreCursor():void
// {
// if (cursorID != CursorManager.NO_CURSOR)
// {
// cursorManager.removeCursor(cursorID);
// cursorID = CursorManager.NO_CURSOR;
// }
// }
/**
* @private
*/
// mx_internal function getDividerIndex(divider:BoxDivider):int
// {
// var n:int = numChildren;
// for (var i:int = 0; i < n - 1; i++)
// {
// if (getDividerAt(i) == divider)
// return i;
// }
// return -1;
// }
/**
* @private
*/
// private function getMousePosition(event:MouseEvent):Number
// {
// var point:Point = new Point(event.stageX, event.stageY);
// point = globalToLocal(point);
// return isVertical() ? point.y : point.x;
// }
/**
* @private
*/
// mx_internal function startDividerDrag(divider:BoxDivider,
// trigger:MouseEvent):void
// {
// // Make sure the user is not currently dragging.
// if (activeDividerIndex >= 0)
// return;
//
// activeDividerIndex = getDividerIndex(divider);
//
// var event:DividerEvent =
// new DividerEvent(DividerEvent.DIVIDER_PRESS);
// event.dividerIndex = activeDividerIndex;
// dispatchEvent(event);
//
// if (liveDragging)
// activeDivider = divider;
// else
// {
// activeDivider = createDivider(PROXY_DIVIDER_INDEX);
// activeDivider.visible = false;
// activeDivider.state = DividerState.DOWN;
// activeDivider.setActualSize(divider.width, divider.height);
// activeDivider.move(divider.x, divider.y);
// activeDivider.visible = true;
// divider.state = DividerState.UP;
// }
//
// if (isVertical())
// activeDividerStartPosition = activeDivider.y;
// else
// activeDividerStartPosition = activeDivider.x;
//
// dragStartPosition = getMousePosition(trigger);
// dragDelta = 0;
//
// cacheChildSizes();
// adjustChildSizes();
//
// computeMinAndMaxDelta();
//
// systemManager.getSandboxRoot().addEventListener(MouseEvent.MOUSE_MOVE, mouseMoveHandler, true);
// systemManager.deployMouseShields(true);
// }
/**
* @private
* Store away some important information about
* each child for us to use while we move the divider.
*/
// private function cacheSizes():void
// {
// oldChildSizes = []; // empty array
//
// var vertical:Boolean = isVertical();
//
// var smallest:Number = Number.MAX_VALUE; // use a big number
//
// var n:int = numChildren;
// for (var i:int = 0; i < n; i++)
// {
// var child:IUIComponent = getLayoutChildAt(i);
// if (!child.includeInLayout)
// continue;
//
// var sz:Number = vertical ? child.height : child.width;
//
// var mx:Number = vertical ? child.maxHeight : child.maxWidth;
//
// var umn:Number = vertical ?
// child.explicitMinHeight :
// child.explicitMinWidth; // avoid measured values
//
// // A NaN min means 0.
// var mn:Number = (isNaN(umn)) ? 0 : umn;
//
// // Compute these for later use.
// var dMin:Number = Math.max(0, sz - mn);
// var dMax:Number = Math.max(0, mx - sz);
//
// if (sz > 0 && sz < smallest)
// smallest = sz;
//
// oldChildSizes.push(new ChildSizeInfo(sz, mn, mx, dMin, dMax));
// }
//
// // Remember the smallest child size we saw.
// oldChildSizes.push(new ChildSizeInfo((smallest == Number.MAX_VALUE) ? 1 : smallest));
// }
/**
* @private
*/
// private function cacheChildSizes():void
// {
// oldChildSizes = []; // clear or store
//
// cacheSizes();
// }
/**
* @private
*/
// private function mouseMoveHandler(event:MouseEvent):void
// {
// dragDelta = limitDelta(getMousePosition(event) - dragStartPosition);
//
// var dividerEvent:DividerEvent =
// new DividerEvent(DividerEvent.DIVIDER_DRAG);
// dividerEvent.dividerIndex = activeDividerIndex;
// dividerEvent.delta = dragDelta;
// dispatchEvent(dividerEvent);
//
// if (liveDragging)
// {
// adjustChildSizes();
//
// invalidateDisplayList();
//
// updateDisplayList(unscaledWidth, unscaledHeight);
// }
// else
// {
// if (isVertical())
// activeDivider.move(0, activeDividerStartPosition + dragDelta);
// else
// activeDivider.move(activeDividerStartPosition + dragDelta, 0);
// }
// }
/**
* @private
*
* @param trigger May be null if the event is not a MouseEvent but
* a mouse event from another sandbox.
*/
// mx_internal function stopDividerDrag(divider:BoxDivider,
// trigger:MouseEvent):void
// {
// if (trigger)
// dragDelta = limitDelta(getMousePosition(trigger) - dragStartPosition);
//
// var event:DividerEvent =
// new DividerEvent(DividerEvent.DIVIDER_RELEASE);
// event.dividerIndex = activeDividerIndex;
// event.delta = dragDelta;
// dispatchEvent(event);
//
// if (!liveDragging)
// {
// if (dragDelta == 0)
// getDividerAt(activeDividerIndex).state = DividerState.OVER;
//
// if (activeDivider)
// dividerLayer.removeChild(activeDivider);
// activeDivider = null;
//
// adjustChildSizes();
//
// invalidateSize();
// invalidateDisplayList();
// }
//
// resetDividerTracking();
// systemManager.getSandboxRoot().removeEventListener(MouseEvent.MOUSE_MOVE, mouseMoveHandler, true);
// systemManager.deployMouseShields(false);
// }
/**
* @private
*/
// private function resetDividerTracking():void
// {
// activeDivider = null;
// activeDividerIndex = -1;
// activeDividerStartPosition = NaN;
// dragStartPosition = NaN;
// dragDelta = NaN;
// oldChildSizes = null;
// minDelta = NaN;
// maxDelta = NaN;
// }
/**
* @private
* Determine the maximum amount of movement that
* a divider, i, can move both up and down.
*
* We base this calculation on the amount of
* travel that each divider supports, assuming
* that as one divider reaches its limits, the next
* divider will move. In this way dividers will
* cascade.
*/
// private function computeAllowableMovement(at:int):void
// {
// // We break the computation into two loops,
// // so that we can calc min and max travel
// // independently as one would move the divider
// // either up or down.
// var deltaMinAbove:Number = 0;
// var deltaMaxAbove:Number = 0;
// var deltaMinBelow:Number = 0;
// var deltaMaxBelow:Number = 0;
//
// var n:int = numLayoutChildren;
// var i:int;
// var child:ChildSizeInfo;
//
// if (at < 0)
// return;
//
// for (i = at; i >= 0; i--)
// {
// child = ChildSizeInfo(oldChildSizes[i]);
//
// deltaMinAbove += (dontCoalesceDividers && deltaMinAbove) ?
// 0 : child.deltaMin;
//
// deltaMaxAbove += (dontCoalesceDividers && deltaMaxAbove) ?
// 0 : child.deltaMax;
// }
//
// for (i = at + 1; i < n; i++)
// {
// child = ChildSizeInfo(oldChildSizes[i]);
//
// deltaMinBelow += (dontCoalesceDividers && deltaMinBelow) ?
// 0 : child.deltaMin;
//
// deltaMaxBelow += (dontCoalesceDividers && deltaMaxBelow) ?
// 0 : child.deltaMax;
// }
//
// // Now the maximum movement we can have if
// // the divider is moved up is equal to the
// // smaller of how much we can shrink all
// // components above our divider or the
// // maximum of how much the components below
// // our divider can grow. Similarly for the
// // divider moving in the opposite direction.
// var deltaUp:Number = Math.min(deltaMinAbove, deltaMaxBelow);
// var deltaDn:Number = Math.min(deltaMinBelow, deltaMaxAbove);
//
// // deltaUp needs to be in -ve in order for our
// // update logic to work
// minDelta = -deltaUp;
// maxDelta = deltaDn;
// }
/**
* @private
*/
// private function computeMinAndMaxDelta():void
// {
// computeAllowableMovement(activeDividerIndex);
// }
/**
* @private
*/
// private function limitDelta(delta:Number):Number
// {
// if (delta < minDelta)
// delta = minDelta;
// else if (delta > maxDelta)
// delta = maxDelta;
//
// // Make sure it is not fractional,
// // otherwise we lose pixels. (Bug 87339)
// delta = Math.round(delta);
// return delta;
// }
/**
* @private
* We distribute the delta space in the same
* fashion that we calculated it. That is we
* start at the divider and give out space
* until we hit a limit on the component or
* we run out of space to distribute.
* We need to do this in both directions since
* in one direction we are shrinking and
* in the other we are growing.
*/
// private function distributeDelta():void
// {
// // if there is no movement of divider we need not
// // do any child resizing.
// if (!dragDelta)
// return;
//
// var vertical:Boolean = isVertical();
// var n:int = numLayoutChildren;
// var k:int = activeDividerIndex;
// var smallest:Number = oldChildSizes[n].size -
// Math.abs(dragDelta); // smallest possible child size
//
// if (smallest <= 0 || isNaN(smallest))
// smallest = 1;
//
// var i:int;
// var size:ChildSizeInfo;
// var move:Number;
// var newSize:Number;
// var child:IUIComponent;
// var childSize:Number;
//
// // Find the index of the child before the active divider
// var activeDividerChildIndex:int = -1;
// var dividerIndex:int = -1;
// while (dividerIndex < activeDividerIndex)
// {
// if (UIComponent(getChildAt(++activeDividerChildIndex)).includeInLayout)
// ++dividerIndex;
// }
//
// // Distribute space starting from the center and
// // moving upwards.
// var curChildIndex:int = activeDividerChildIndex;
// var amt:Number = dragDelta;
// for (i = k; i >= 0; i--)
// {
// // If dragDelta -ve => shrink upper components
// // otherwise grow them.
// size = ChildSizeInfo(oldChildSizes[i]);
// move = (amt < 0) ?
// -Math.min(-amt, size.deltaMin) :
// Math.min(amt, size.deltaMax);
//
// // Adjust the component and reduce the remaining delta
// newSize = size.size + move;
// amt -= move;
//
// // Find the previous child included in the layout
// do
// {
// child = IUIComponent(getChildAt(curChildIndex--));
// }
// while (!child.includeInLayout);
//
// // Adjust the child size.
// childSize = (newSize / smallest) * 100;
//
// if (vertical)
// child.percentHeight = childSize;
// else
// child.percentWidth = childSize;
//
// // Force a re-measure.
// if (child is IInvalidating)
// IInvalidating(child).invalidateSize();
// }
//
// // assert(amt == 0)
//
// // Now do the same distribution but moving downwards.
// curChildIndex = activeDividerChildIndex + 1;
// amt = dragDelta;
// for (i = k + 1; i < n; i++)
// {
// // If dragDelta -ve => grow lower components
// // otherwise shrink them.
// size = ChildSizeInfo(oldChildSizes[i]);
// move = (amt < 0) ?
// Math.min(-amt, size.deltaMax) :
// -Math.min(amt, size.deltaMin);
//
// // Adjust the component and reduce the remaining delta.
// newSize = size.size + move;
// amt += move;
//
// // Find the next child included in the layout
// do
// {
// child = IUIComponent(getChildAt(curChildIndex++));
// }
// while (!child.includeInLayout);
//
// childSize = (newSize / smallest) * 100;
//
// if (vertical)
// child.percentHeight = childSize;
// else
// child.percentWidth = childSize;
//
// // Force a re-measure.
// if (child is IInvalidating)
// IInvalidating(child).invalidateSize();
// }
// }
/**
* @private
* For 1.5 we normalize all children to the smallest one
* So that we can remove n-1 children and still guarantee
* one child can consume 100%.
* Also we support the concept of fixed sized children,
* which allows us to have one or more children be rigid
* in the DividedBox in this case, the dividers above
* and below the fixed component move in unison.
*/
// private function adjustChildSizes():void
// {
// distributeDelta();
// }
/**
* @private
* Algorithm employed pre-layout to ensure that
* we don't leave any dangling space and to ensure
* that only explicit min/max values are honored.
*
* We first compute the sum of %'s across all
* children to ensure that we have at least 100%.
* If so, we are done. If not, then we attempt
* to attach the remaining amount to the last
* component, if not, then we distribute the
* percentages evenly across all % components.
*
*/
// private function preLayoutAdjustment():void
// {
// // Calculate the total %
// var vertical:Boolean = isVertical();
//
// var totalPerc:Number = 0;
// var percCount:Number = 0;
//
// var n:int = numChildren;
// var i:int;
// var child:IUIComponent;
// var perc:Number;
//
// for (i = 0; i < n; i++)
// {
// child = getLayoutChildAt(i);
//
// if (!child.includeInLayout)
// continue;
//
// // Clear out measured min/max
// // so super.layout() doesn't use them.
// child.measuredMinWidth = 0;
// child.measuredMinHeight = 0;
//
// perc = vertical ? child.percentHeight : child.percentWidth;
//
// if (!isNaN(perc))
// {
// totalPerc += perc;
// percCount++;
// }
// }
//
// // during preLayoutAdjustment, we make some changes to the children's
// // widths and heights. We keep track of the original values in postLayoutChanges
// // so we can later go back and reset them so another layout pass is working
// // with the correct values rather than these modified values.
// postLayoutChanges = [];
// var changeObject:Object;
//
// // No flexible children, so we make the last one 100%.
// if (totalPerc == 0 && percCount == 0)
// {
// // Everyone is fixed and we can give 100% to the last
// // included in layout one without concern.
// for (i = n-1; i >= 0; i--)
// {
// child = UIComponent(getChildAt(i));
// if (child.includeInLayout)
// {
// // create a changeObject to keep track of the original values
// // that this child had for width and height
// changeObject = {child: child};
// if (vertical)
// {
// // we know there's no percentHeight originally
// if (child.explicitHeight)
// changeObject.explicitHeight = child.explicitHeight;
// else
// changeObject.percentHeight = NaN;
//
// child.percentHeight = 100;
// }
// else
// {
// // we know there's no percentWidth originally
// if (child.explicitWidth)
// changeObject.explicitWidth = child.explicitWidth;
// else if (child.percentWidth)
// changeObject.percentWidth = NaN;
//
// child.percentWidth = 100;
// }
// postLayoutChanges.push(changeObject);
// break;
// }
// }
// }
// else if (totalPerc < 100)
// {
// // We have some %s but they don't total to 100, so lets
// // distribute the delta across all of them and in the
// // meantime normalize all %s to unscaledHeight/Width.
// // The normalization takes care of the case where any one
// // of the components hits a min/max limit on their size,
// // which could result in the others filling less than 100%.
// var delta:Number = Math.ceil((100 - totalPerc) / percCount);
// for (i = 0; i < n; i++)
// {
// child = getLayoutChildAt(i);
//
// if (!child.includeInLayout)
// continue;
//
// changeObject = {child: child};
//
// if (vertical)
// {
// perc = child.percentHeight;
// if (!isNaN(perc))
// {
// changeObject.percentHeight = child.percentHeight;
// postLayoutChanges.push(changeObject);
//
// child.percentHeight = (perc + delta) * unscaledHeight;
// }
// }
// else
// {
// perc = child.percentWidth;
// if (!isNaN(perc))
// {
// changeObject.percentWidth = child.percentWidth;
// postLayoutChanges.push(changeObject);
//
// child.percentWidth = (perc + delta) * unscaledWidth;
// }
// }
// }
// }
//
// // OK after all this magic we still can't guarantee that the space is
// // entirely filled. For example, all percent components hit their max
// // values. In this case, the layout will include empty space at the end,
// // and once the divider is touched, the non-percent based components
// // will be converted into percent based ones and fill the remaining
// // space. It seems to me that this scenario is highly unlikely.
// // Thus I've choosen the route of stretching the percent based
// // components and not touching the explicitly sized or default
// // sized ones.
// //
// // Another option would be to stretch the default sized components
// // either in addition to the percent based ones or instead of.
// // This seemed a little odd to me as the user never indicated
// // that these components are to be stretched initially, so in the end
// // I choose to tweak the components that the user has indicated
// // as being stretchable.
// }
/**
* @private
* During preLayoutAdjustment, we make some changes to the children's
* widths and heights. We keep track of the original values in postLayoutChanges
* so we can later go back and reset them so another layout pass is working
* with the correct values rather than these modified values.
*/
// private var postLayoutChanges:Array;
/**
* @private
* Post layout work. In preLayoutAdjustment()
* sometimes we set a child's percentWidth/percentHeight.
* postLayoutAdjustment() will reset the child's width or height
* back to what it was.
*/
// private function postLayoutAdjustment():void
// {
// // each object has a child property and may have a set of width/height
// // properties that it would like to be set
// var len:int = postLayoutChanges.length;
// for (var i:int = 0; i < len; i++)
// {
// var changeObject:Object = postLayoutChanges[i];
//
// if (changeObject.percentWidth !== undefined)
// changeObject.child.percentWidth = changeObject.percentWidth;
//
// if (changeObject.percentHeight !== undefined)
// changeObject.child.percentHeight = changeObject.percentHeight;
//
// if (changeObject.explicitWidth !== undefined)
// changeObject.child.explicitWidth = changeObject.explicitWidth;
//
// if (changeObject.explicitHeight !== undefined)
// changeObject.child.explicitHeight = changeObject.explicitHeight;
// }
// postLayoutChanges = null;
// }
//--------------------------------------------------------------------------
//
// Event handlers
//
//--------------------------------------------------------------------------
/**
* @private
*/
// private function childAddHandler(event:ChildExistenceChangedEvent):void
// {
// var child:DisplayObject = event.relatedObject;
//
// child.addEventListener("includeInLayoutChanged",
// child_includeInLayoutChangedHandler);
//
// if (!IUIComponent(child).includeInLayout)
// return;
//
// numLayoutChildren++;
//
// if (numLayoutChildren > 1)
// createDivider(numLayoutChildren - 2);
//
// // Clear the cached values so that we do another
// // measurement pass.
// dbMinWidth = NaN;
// dbMinHeight = NaN;
// dbPreferredWidth = NaN;
// dbPreferredHeight = NaN;
// }
/**
* @private
*/
// private function childRemoveHandler(event:ChildExistenceChangedEvent):void
// {
// var child:DisplayObject = event.relatedObject;
//
// child.removeEventListener("includeInLayoutChanged",
// child_includeInLayoutChangedHandler);
//
// if (!IUIComponent(child).includeInLayout)
// return;
//
// numLayoutChildren--;
//
// if (numLayoutChildren > 0)
// dividerLayer.removeChild(getDividerAt(numLayoutChildren - 1));
//
// // Clear the cached values so that we do another
// // measurement pass.
// dbMinWidth = NaN;
// dbMinHeight = NaN;
// dbPreferredWidth = NaN;
// dbPreferredHeight = NaN;
// invalidateSize();
// }
/**
* @private
* When a child's includeInLayout changes, we either remove or add a
* divider.
*/
// private function child_includeInLayoutChangedHandler(event:Event):void
// {
// var child:UIComponent = UIComponent(event.target);
//
// if (child.includeInLayout && ++numLayoutChildren > 1)
// createDivider(numLayoutChildren - 2);
//
// else if (!child.includeInLayout && --numLayoutChildren > 0)
// dividerLayer.removeChild(getDividerAt(numLayoutChildren - 1));
//
// // Clear the cached values so that we do another
// // measurement pass.
// dbMinWidth = NaN;
// dbMinHeight = NaN;
// dbPreferredWidth = NaN;
// dbPreferredHeight = NaN;
// invalidateSize();
// }
}
}
////////////////////////////////////////////////////////////////////////////////
//
// Helper class: ChildSizeInfo
//
////////////////////////////////////////////////////////////////////////////////
/**
* @private
*/
//class ChildSizeInfo
//{
// //--------------------------------------------------------------------------
// //
// // Constructor
// //
// //--------------------------------------------------------------------------
//
// /**
// * @private
// */
// public function ChildSizeInfo(size:Number,
// min:Number = 0, max:Number = 0,
// deltaMin:Number = 0, deltaMax:Number = 0)
// {
// super();
//
// this.size = size;
// this.min = min;
// this.max = max;
// this.deltaMin = deltaMin;
// this.deltaMax = deltaMax;
// }
//
// //--------------------------------------------------------------------------
// //
// // Properties
// //
// //--------------------------------------------------------------------------
//
// //----------------------------------
// // deltaMin
// //----------------------------------
//
// /**
// * @private
// */
// public var deltaMin:Number;
//
// //----------------------------------
// // deltaMax
// //----------------------------------
//
// /**
// * @private
// */
// public var deltaMax:Number;
//
// //----------------------------------
// // min
// //----------------------------------
//
// /**
// * @private
// */
// public var min:Number;
//
// //----------------------------------
// // max
// //----------------------------------
//
// /**
// * @private
// */
// public var max:Number;
//
// //----------------------------------
// // size
// //----------------------------------
//
// /**
// * @private
// */
// public var size:Number;
//}
```
Here is the test case I used:
```
<mx:Application xmlns:fx="http://ns.adobe.com/mxml/2009"
xmlns:mx="library://ns.apache.org/royale/mx"
xmlns:s="library://ns.apache.org/royale/spark"
width="1000" height="400"
>
<fx:Script>
<![CDATA[
]]>
</fx:Script>
<fx:Declarations>
</fx:Declarations>
<mx:VDividedBox x="0" y="0" height="100%" width="100%">
<s:BorderContainer backgroundColor="#ff0000" id="bcTop" height="100" width="100%"/>
<s:BorderContainer backgroundColor="#0000ff" id="bcBottom" height="200" width="100%"/>
</mx:VDividedBox>
</mx:Application>
```
--
This is an automated message from the Apache Git Service.
To respond to the message, please log on to GitHub and use the
URL above to go to the specific comment.
To unsubscribe, e-mail: issues-unsubscribe@royale.apache.org
For queries about this service, please contact Infrastructure at:
users@infra.apache.org
